Real-Time Data you can trust

IOspy is a globally deployed data acquisition platform designed for engineers and operators who need absolute confidence in their sensor and device readings. Whether you're monitoring critical equipment, validating system performance or capturing high-precision measurements, IOspy delivers clean, reliable, real-time data-every time.

Meaningful Insights

Built for flexibility, IOspy connects to almost any digital instrument, acquires data in RS232 or TCP format,  applies intelligent corrections, checks data quality and presents results through clear, intuitive displays. From live dashboards to detailed logs and rolling statistics, IOspy turns raw device output into meaningful insight you can act on instantly.

Features

  • User-defined templates to read any kind of data input telegram

    •Each active input channel can be assigned a message
    string (telegram) which can contain any number of
    data values.
    •Once configured and running, IOspy acquires data
    from each active input channel and the incoming data
    strings can be viewed as they arrive.

  • Reformatting and transmission of data in required format

    Communications modes:
    •Serial Interface
    •TCP
    •UDP

    The system can also communicate with other apps on the same PC.

  • Apply corrections, validate and quality check data

    Data correction offsets can be individually defined for all data fields. Different corrections can be applied

  • Accurate time-tagging and logging to disk in simple text files
    •Tab separated ASCII text format - can be read by Excel •User defined interval by time step or at Nth data update •Elect to log either Raw or Corrected data •Control log file location, naming and size •Start and stop logging while on-line
  • Set thresholds and targets with alarms

    •Can be set up for every data item

    •Data displays indicate whether values are in or out of tolerance from target by colour change (red/green) and/or other means appropriate to the display type

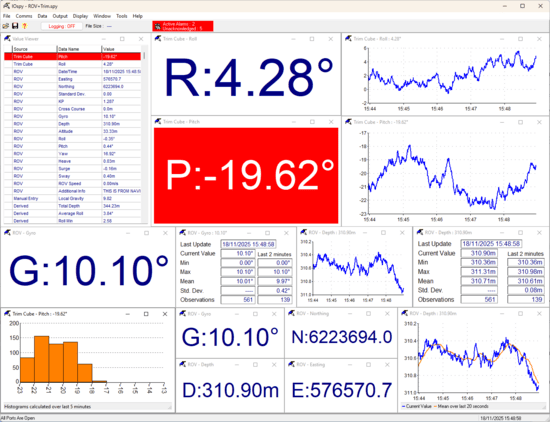

  • Dynamic Graph and numeric displays

    •Dynamically updating display window that can be user configured

    •Multiple panels for detailed data displays which can be switched between: Statistics/ Line Graph/Histogram/Large Numeric/Gauge Mimic/Easting&Northing

  • Statistics - computed using corrected data
    •Rolling statistics of Min, Max, Mean and Standard Deviation - on all values since a “Reset” and also for the last N values where N can be set.
    •Facility to capture a specific sample size (number of acquired data strings) with manual control over Start and Stop.

BOOK A DEMO

We’ll walk you through our IOspy Utility; letting you evaluate its features and user experience first-hand.
